Compactor
-
- KTC Series
-
Compactor (Ground Stomper)
Uneven ground surfaces and slopes can be tramped down with the use of this compactor, which ensures stability by reducing product damage using the rubber plate of the rubber band.

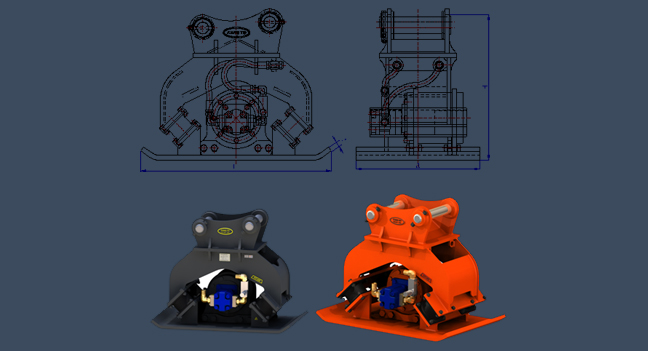

Floor plan
Spec.
| Grade (KTC) |
Application Capa. (ton) |
Harden Power (ton) |
Cycles per minuts (rpm) |
Hydraulic Flow required (L/min) |
|---|---|---|---|---|
| KTC300 | 3.5-8.0 | 4 | 2000 | 45-75 |
| KTC600 | 11.0-14.0 | 7 | 2000 | 85-105 |
| KTC800 | 17.0-22.0 | 15 | 2000 | 120-170 |
| KTC1000 | 23 | 15 | 2000 | 120-170 |
| Grade (KTC) |
Operating pressure (kg/cm³) |
Base Plate-Dim. (LxWxT)mm |
Overall Height(H) (mm) |
Overall Width(W) (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| KTC300 | 100-130 | 900X550X25 | 760 | 550 | กก |
| KTC600 | 100-130 | 1160X700X28 | 920 | 700 | 500 |
| KTC800 | 150-200 | 1350X900X30 | 1060 | 900 | 900 |
| KTC1000 | 150-200 | 1350X900X30 | 1100 | 900 | 950 |
